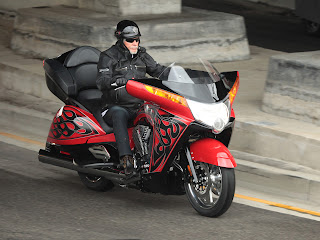

2013 Victory Arlen Ness Victory Vision
Arlen Ness, the godfather of customs, has taken the world’s premium luxury touring bike and created a limited-edition custom masterpiece. Lowered and loaded with Ness custom accessories, it features custom paint and graphics Arlen designed to turn heads as far and wide as your touring takes you.
2013 Victory Arlen Ness Victory Vision Key Features
- 106/6-speed Freedom V-Twin engine with 108 ft-lbs of torque
- Arlen Ness® custom paint
- Limited-Edition numbered badge
- Hot-rod Ness billet wheels
- Diamond-cut cylinders and heads
- Kicker® premium audio
2013 Victory Arlen Ness Victory Vision Features and BenefitsEach Bike Numbered & Signed
This exclusive, limited-edition model has a numbered metal badge on the case that includes graphics of the Arlen Ness logo and signature.
Freedom® 106/6 Drivetrain With Diamond-Cutting
The perfect complement to this bike’s exclusive Arlen Ness styling is genuine Victory performance. The smooth and powerful 106-cubic inch Freedom® V-Twin serves up 108 ft-lb of torque, and the 6-speed transmission has true overdrive for the smoothest highway cruising. Plus, the cylinders are diamond-cut for the ultimate custom treatment.
Arlen Ness® Custom Paint & Graphics
The Godfather of Custom Builders has done it again, creating a head-turning, traffic-stopping visual package with Havasu Red paint and dynamic Arlen Ness flame graphics. It’s impossible not to stare in admiration.
Hot Rod Ness Billet Wheels
The Arlen Victory Vision Tour struts down the street with a Hot Rod Ness Billet custom wheel leading the way. This a great-looking wheel that perfectly complements the bike’s custom treatment.
Diamond-Cut Cylinders & HeadsThe Freedom® engine gets a premium custom treatment as the exterior surfaces of the cylinders and heads are diamond-cut for a distinctive look. This is an extremely rare treatment that adds brilliance and reflective surfaces to the engine.
Kicker Premium Speakers
Take the party on the road. Premium KICKER® speakers in the fairing and front face of the trunk pump out powerful, top-quality audio. The audio system volume control turns up the volume as bike speed increases, and vice versa.
2013 Victory Arlen Ness Victory Vision
USA Specifications/Technical Details
US MSRP Price: $25,999 USD
ENGINE
Battery 12 volts / 18 amp hours
Bore x Stroke 101 x 108 mm
Charging System 48 amps max output
Clutch Wet, multi-plate
Compression Ratio 9.4 : 1
Cooling System Air / oil
Displacement 106 ci / 1731 cc
Engine Type 4-stroke 50° V-Twin
Exhaust Split dual exhaust with crossover
Final Drive Carbon Fiber Reinforced Belt
Fuel Capacity 6.0 gal / 22.7 ltr
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Oil Capacity 5.0 qts / 4.75 ltr
Primary Drive Gear drive with torque compensator
Transmission 6-speed overdrive constant mesh
Valve Train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
SUSPENSION
Front Suspension Conventional telescopic fork, 46 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube, cast aluminum with constant-rate linkage, 3.65 in / 92.7 mm travel, air adjustable
CHASSIS
Dry Weight 869 lbs / 395 kg
Ground Clearance 4.8 in / 122 mm
GVWR 1414 lbs / 643 kg
Length 104.9 in / 2,665 mm
Rake/trail 29.0° / 5.6 in / 142 mm
Seat Height 24.5 in / 622 mm
Wheelbase 65.7 in / 1670 mm
BRAKES
Brake System Type Linked w/ ABS
Front braking system Dual 300mm floating rotors with 4-piston calipers
Rear braking system 300mm floating rotor with 2-piston caliper
WHEELS & TIRES
Front Tire 130/70R18 Dunlop Elite 3
Front Wheel 18 x 3.0 in
Rear Tire 180/60R16 Dunlop Elite 3
Rear Wheel 16 x 5.0 in
2013 Victory Arlen Ness Victory Vision
Canadian Specifications/Technical Details
Canada MSRP Price: $28,349 CDN
ENGINE
Battery 12 volts / 18 amp hours
Bore x Stroke 101 x 108 mm
Charging System 48 amps max output
Clutch Wet, multi-plate
Compression Ratio 9.4 : 1
Cooling System Air / oil
Displacement 106 ci / 1731 cc
Engine Type 4-stroke 50° V-Twin
Exhaust Split dual exhaust with crossover
Final Drive Carbon Fiber Reinforced Belt
Fuel Capacity 6.0 gal / 22.7 ltr
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Oil Capacity 5.0 qts / 4.75 ltr
Primary Drive Gear drive with torque compensator
Transmission 6-speed overdrive constant mesh
Valve Train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
SUSPENSION
Front Suspension Conventional telescopic fork, 46 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube, cast aluminum with constant-rate linkage, 3.65 in / 92.7 mm travel, air adjustable
CHASSIS
Dry Weight 869 lbs / 395 kg
Ground Clearance 4.8 in / 122 mm
GVWR 1414 lbs / 643 kg
Length 104.9 in / 2,665 mm
Rake/trail 29.0° / 5.6 in / 142 mm
Seat Height 24.5 in / 622 mm
Wheelbase 65.7 in / 1670 mm
BRAKES
Brake System Type Linked w/ ABS
Front braking system Dual 300mm floating rotors with 4-piston calipers
Rear braking system 300mm floating rotor with 2-piston caliper
WHEELS & TIRES
Front Tire 130/70R18 Dunlop Elite 3
Front Wheel 18 x 3.0 in
Rear Tire 180/60R16 Dunlop Elite 3
Rear Wheel 16 x 5.0 in
