2009 Harley-Davidson FXDC Dyna Super Glide Custom pictures

2009 Harley-Davidson FXDC Dyna Super Glide Custom
Harley-Davidson Pictures

2009 Harley-Davidson FXDC Dyna Super Glide Custom
 Click Thumbnail to download (size 1600 x 1200 pixels)

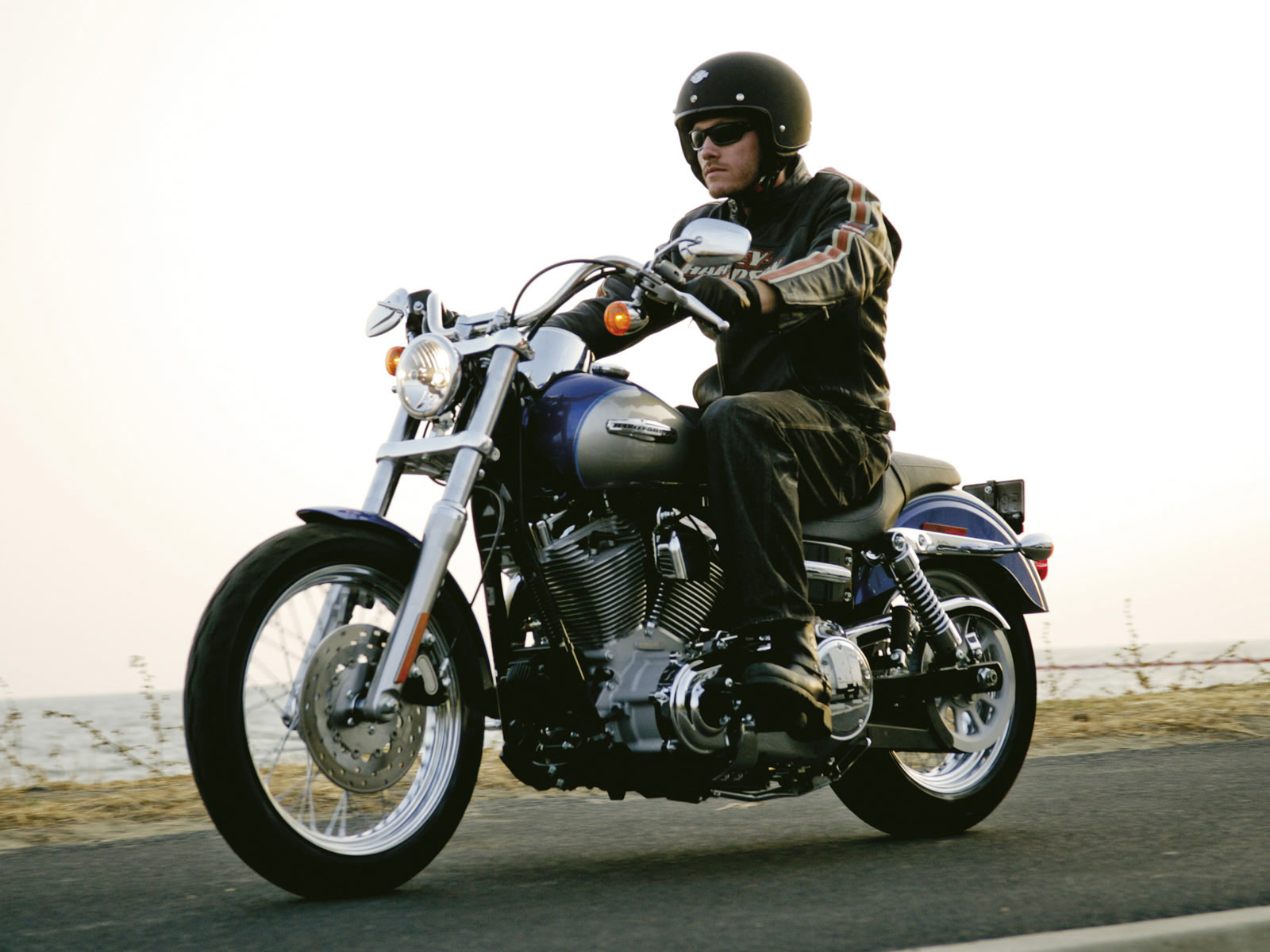

With a new low-slung, two-up ribbed seat, Fat Bob fuel tank, laced wheels and plenty of chrome, the Dyna Super Glide Custom stands out on the street. New mini pullback handlebars over a tank-mounted chrome console give the front end a clean look.


Model: Harley-Davidson FXDC Dyna Super Glide Custom

Year: 2009
Category: Custom / cruiser
Rating: 72 out of 100.

Engine and transmission

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Cooling system: Air
Gearbox: 6-speed
Transmission type final drive: Belt
Clutch: 9-plate, wet

Physical measures

Dry weight: 295.0 kg (650.4 pounds)
Seat height: 680 mm (26.8 inches) If adjustable, lowest setting.
Overall length: 2,355 mm (92.7 inches)
Ground clearance: 153 mm (6.0 inches)
Wheelbase: 1,630 mm (64.2 inches)

Chassis and dimensions

Frame type: Mild steel, tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 29.0°
Trail: 119 mm (4.7 inches)
Front suspension: 49mm with polished aluminium fork
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Coil-over shock
Rear suspension travel: 104 mm (4.1 inches)
Front tyre dimensions: 100/90-19
Rear tyre dimensions: 160/70-17
Front brakes: Single disc. 4-piston
Rear brakes: Single disc. 2-piston
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers

Other specifications

Fuel capacity: 19.30 litres (5.10 gallons)
Color options: Vivid Black, Dark Blue Pearl, Red Hot Sunglo, Vivid Black and Pewter Pearl, Flame Blue Pearl and Pewter Pearl
Modifications compared to previous model: New silver-face speedometer with range countdown

Silver powder-coated engine with chrome treatment covers; New low-profile front fender; Sport wrap-around rear fender with painted supports; Chrome, low-profile fuel tank console; Chrome, isolated riser; Mid-mounted rider footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebar; “Teardrop” air cleaner assembly; One-piece, two-up Dyna® classic seat;
